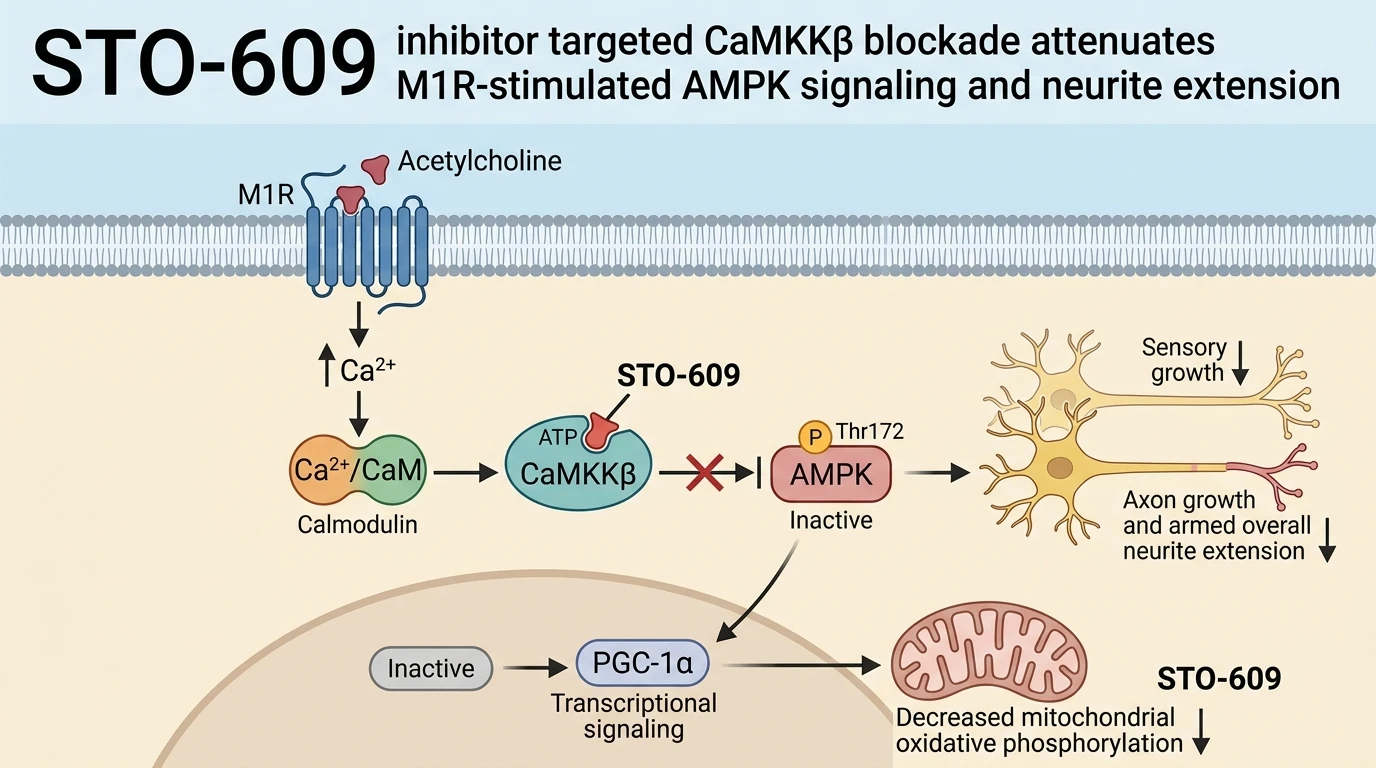

STO-609 inhibitor targeted CaMKKβ blockade attenuates M1R-stimulated AMPK signaling and neurite extension
Copy code to add this image to your page
Calcium signaling acts as a primary transducer of physiological responses in adult peripheral neurons. Among the enzymes mediating calcium-dependent intracellular signaling, Ca2+/calmodulin-dependent protein kinase kinase β (CaMKKβ) functions as a selective upstream kinase that responds to elevated cytosolic calcium ions. Pharmacological manipulation of this enzymatic node relies heavily on STO-609, a small-molecule benzanthrone derivative that acts as a selective, competitive inhibitor of CaMKK isoforms, exhibiting pronounced selectivity for CaMKKβ over CaMKKα and downstream CaMK family members under physiological ATP concentrations. Application of the STO-609 inhibitor provides direct interrogation of calcium-driven biochemical events without non-specifically perturbing adjacent mitogenic pathways, such as downstream small GTPase and kinase cascades.
In primary adult sensory neuron cultures, signaling mediated by muscarinic acetylcholine receptors—specifically the M1 receptor (M1R) subtype—exerts distinct regulatory control over metabolic efficiency and structural remodeling. Selective pharmacological antagonism of M1R using targeted antagonists such as MT7 (a highly specific peptide toxin) or pirenzepine (a small-molecule antagonist) initiates an unexpected pro-metabolic and neurotrophic response. Exposure to these M1R antagonists triggers a transient mobilization of intracellular calcium stores, which directly recruits CaMKKβ activity. Upon enzymatic activation, CaMKKβ catalyzes the targeted phosphorylation of AMP-activated protein kinase (AMPK) at its principal activation site, Threonine 172 (Thr172). Phosphorylation at Thr172 transitions AMPK into an active metabolic state, enabling it to modulate cellular energy homeostasis through downstream coactivators.
The principal downstream effector of this AMPK signaling axis is peroxisome proliferator-activated receptor gamma coactivator-1 alpha (PGC-1α). Activated AMPK promotes the transcriptional coactivator function of PGC-1α, leading to upregulated expression of nuclear-encoded mitochondrial genes. In sensory neuronal models, this activation cascade correlates directly with elevated oxygen consumption rates, enhanced mitochondrial spare respiratory capacity, and elevated ATP synthesis. These metabolic adjustments provide the requisite bioenergetic support for extensive structural remodeling, manifested morphologically as accelerated neurite outgrowth and branching in cultured adult sensory neurons.
Administration of STO-609 systematically disrupts this functional cascade at its apex. By selectively occupying the ATP-binding pocket of CaMKKβ, STO-609 prevents the kinase from phosphorylating AMPK at Thr172 following M1R antagonist treatment. Western blot analyses and immunofluorescence assays confirm that in the presence of STO-609, MT7- and pirenzepine-induced AMPK phosphorylation is completely abolished. Deprived of upstream AMPK activation, downstream PGC-1α transcriptional coactivation fails to occur, leading to a marked attenuation of mitochondrial bioenergetic stimulation. High-resolution respirometry reveals that STO-609 abolishes the gain in basal and maximal oxygen consumption rates otherwise driven by M1R blockade. Furthermore, morphometric quantification demonstrates that the accelerated neurite extension induced by MT7 or pirenzepine is blocked when CaMKKβ is pharmacologically inhibited by STO-609. These biochemical observations establish that M1R antagonist-driven bioenergetic enhancement and structural plasticity in adult sensory neurons are directly contingent upon intact CaMKKβ signaling.

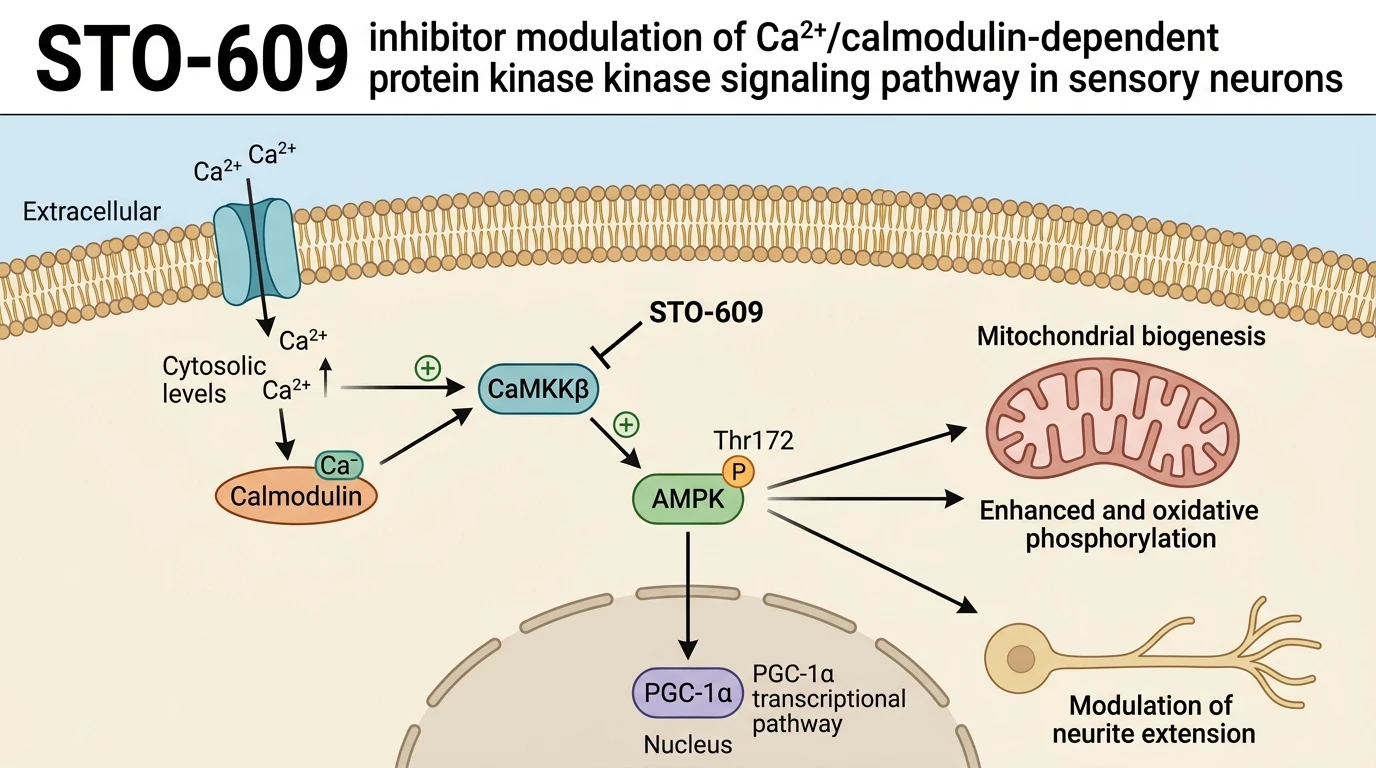

Pharmacological Characterization of CaMKKβ Inhibition in Neuronal Dynamics
Copy code to add this image to your page
STO-609 functions as a potent, selective ATP-competitive inhibitor of Ca2+/calmodulin-dependent protein kinase kinase β (CaMKKβ). By selectively binding the kinase domain of CaMKKβ, STO-609 prevents the upstream phosphorylation of AMP-activated protein kinase (AMPK) at residue Thr172. This enzymatic blockade disrupts downstream transcriptional activation of peroxisome proliferator-activated receptor gamma coactivator-1 alpha (PGC-1α). Consequently, treatment with STO-609 blunts muscarinic acetylcholine receptor antagonist-stimulated mitochondrial bioenergetics, reducing oxygen consumption rates and suppressing enhanced neurite outgrowth in primary sensory neurons under defined in vitro culture conditions.
Muscarinic M1 Blockade Promotes AMPK Phosphorylation via CaMKKβ
Selective antagonist binding to neuronal M1 muscarinic acetylcholine receptors initiates an intracellular signaling stream dependent on cytosolic calcium flux. In isolated adult sensory neurons, administration of pirenzepine or MT7 triggers rapid phosphorylation of AMPK at residue Thr172. Phosphorylation levels increased significantly within fifteen minutes of antagonist exposure. Co-incubation with the STO-609 inhibitor blunted this site-specific phosphorylation event. Baseline AMPK phosphorylation remained unaffected at equivalent compound doses. The suppression occurred in a concentration-dependent fashion across primary sensory cultures. These empirical metrics demonstrate that M1R antagonist-induced AMPK activation operates through CaMKKβ rather than alternative upstream monophosphate-activated kinases such as LKB1.
Inhibition of CaMKKβ Suppresses Mitochondrial Respiration and Axonal Extension
Enhanced metabolic flux provides the thermodynamic driving force required for axonal elongation. Microfluorimetric respirometry assays showed that M1R antagonists elevated both basal and maximal oxygen consumption rates in primary neuronal preparations. Cellular respiratory capacity expanded by over thirty percent under stimulated conditions. Pre-treatment with STO-609 reversed these mitochondrial gains entirely. Oxygen consumption dropped to control baseline values. Consequently, morphometric imaging revealed a concurrent decrease in cumulative neurite length and secondary arborization. Neurite elongation rates slowed markedly upon kinase inhibition. The parallel inhibition of respiration and morphological growth underscores the tight coupling between CaMKKβ-mediated bioenergetic regulation and structural neuroplasticity.
